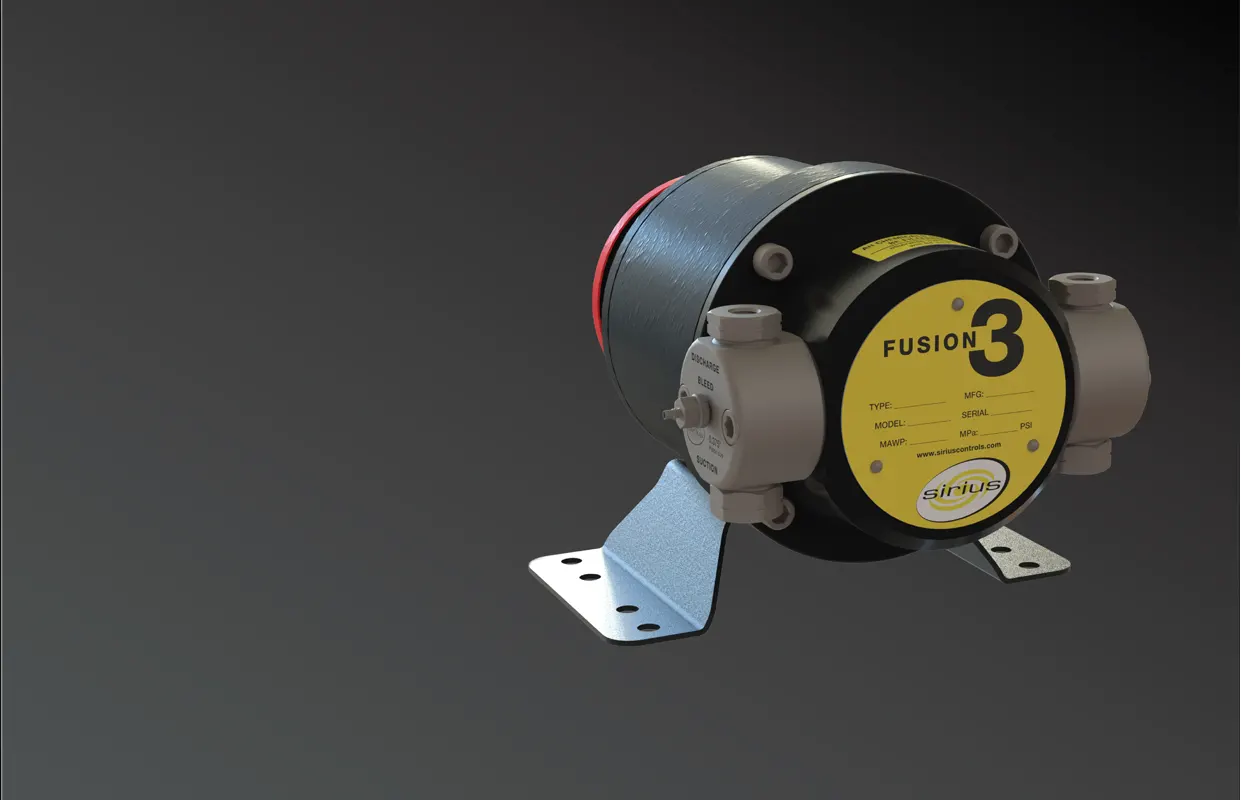

Fusion3™
Builds on the proven Fusion2™ architecture to deliver higher-output chemical injection for hazardous area applications. Engineered with advanced brushless motor technology, it produces greater flow rates and operating pressures while maintaining the precision, reliability, and automation capabilities operators expect from the Fusion product line.
Designed for Class 1 Division 1 environments, the Fusion3™ supports multipoint injection, proportional control, and remote monitoring via WiFi, cellular, or MODBUS. With enhanced durability through dual seal technology and an easy rebuild design, it delivers consistent long-term performance.
- Overview
- Resources
Features
- High production output with 70–80% more fluid than previous models
- Oversized shaft and reinforced bearings for longer life and lower maintenance
- Certified for Class 1 Division 1 for explosion proof locations
- Compatible with Fusion2™ controllers for remote monitoring and autonomous control
- Industry-leading 1000:1 turndown ratio for precise injection across a wide range
- Advanced brushless motor for reliable, continuous-duty operation
- Durable mechanical design for long-term performance in harsh environments
Design Specifications
- Motor Type: Brushless DC motor
- Pump Type: Positive displacement
- Maximum Pressure: 4350 psi
- Maximum Rate: 2170 L/day
- Power Input: Up to 30 VDC
- Duty Cycle: Continuous operation
- Hazardous Ratings: Class 1 Division 1, Groups C/D T4; Class 1 Zone 1 Group IIB
- Operating Temperature: -40 °C to +40 °C (-40 °F to 104 °F)
- Dimensions (Approx.): 9” W × 7‑13/16” H × 10‑7/16” L
- Weight: Approx. 33 lbs
- Connectivity: Sirius Connect IIoT platform or SCADA
