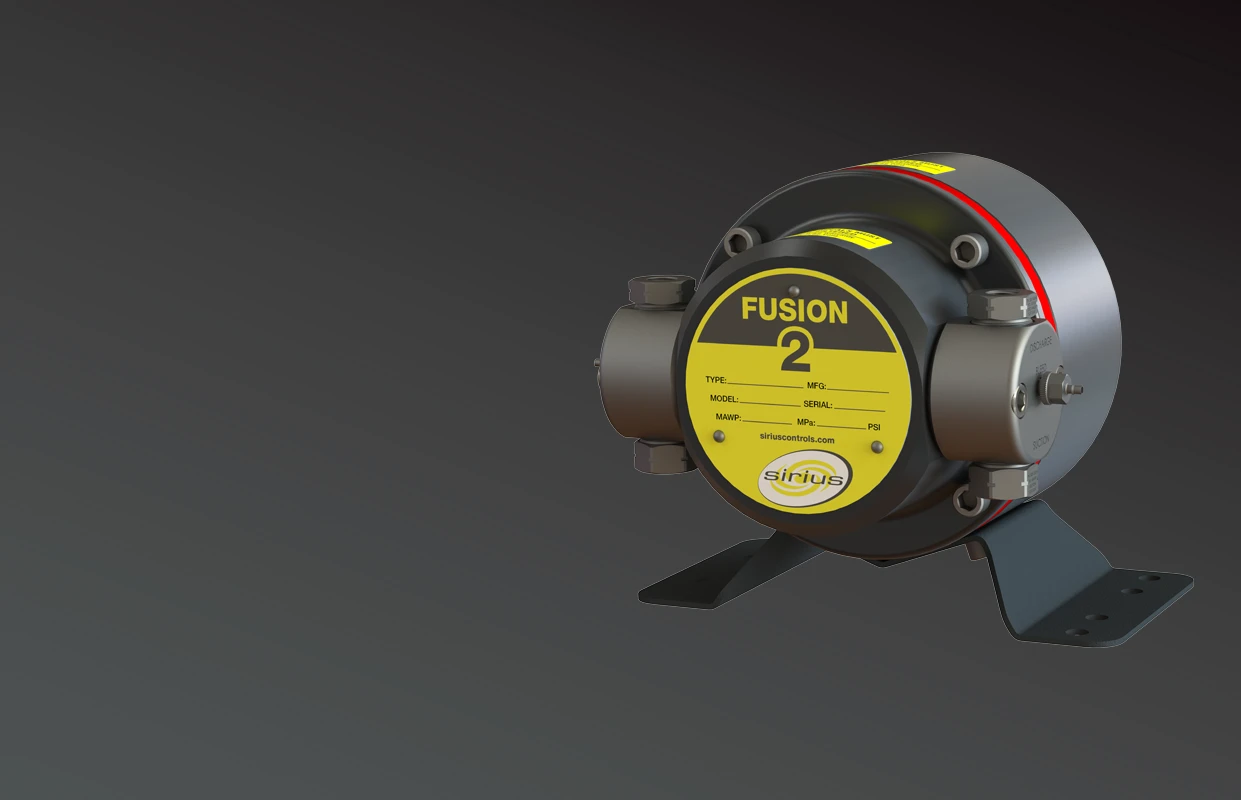

Fusion2™
The industry’s first chemical injection system with a single product architecture that supports AC and DC solar-powered sites, as well as General Purpose and Hazardous environments. Designed for precision, reliability, and efficiency, this smart chemical injection pump and motor delivers accurate injection rates with real-time flow measurement and automatically compensates for pressure and voltage variations.
It supports multipoint injection, proportional control with multiple sensors, and remote monitoring via WiFi, cellular, or MODBUS. With a durable brushless motor, dual seal technology, and easy rebuild design, the system provides over 4 pumping years per rebuild on average, ensuring consistent, long-term performance in the field.
- Overview
- Resources
Features
- Accurate rate control with automatic compensation for pressure and voltage fluctuations
- STACK™ Multipoint injection capable with independent control of up to 15 injection points
- Proportional control with multiple sensor inputs for advanced operational control
- Remote monitoring & control via WiFi, cellular, MODBUS or Sirius Connect
- Durable design with brushless motor, dual seal technology, and temperature control

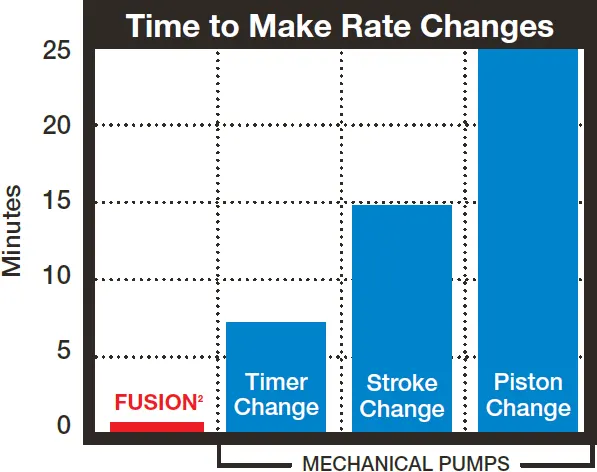

- Smart calibration and simple operation with single-button rate changes, no mechanical adjustments
- Easy rebuild with over 4 pumping years per rebuild on average
- High turndown ratio of 1000:1 for precise flow control
Design Specifications
- Power Source: AC or DC compatibleTurndown: 1000:1 ratio
- Operating Temperature: -40°C to 55°C
- Control Signals: 4–20 mA, MODBUS (RS-485 & TCP)
- Inputs/Outputs: Multiple analog and digital I/O for pressure, temperature, and system control
- Certifications: General purpose and hazardous (C1D2) location rated
- Connectivity: Sirius Connect IIoT platform or SCADA
