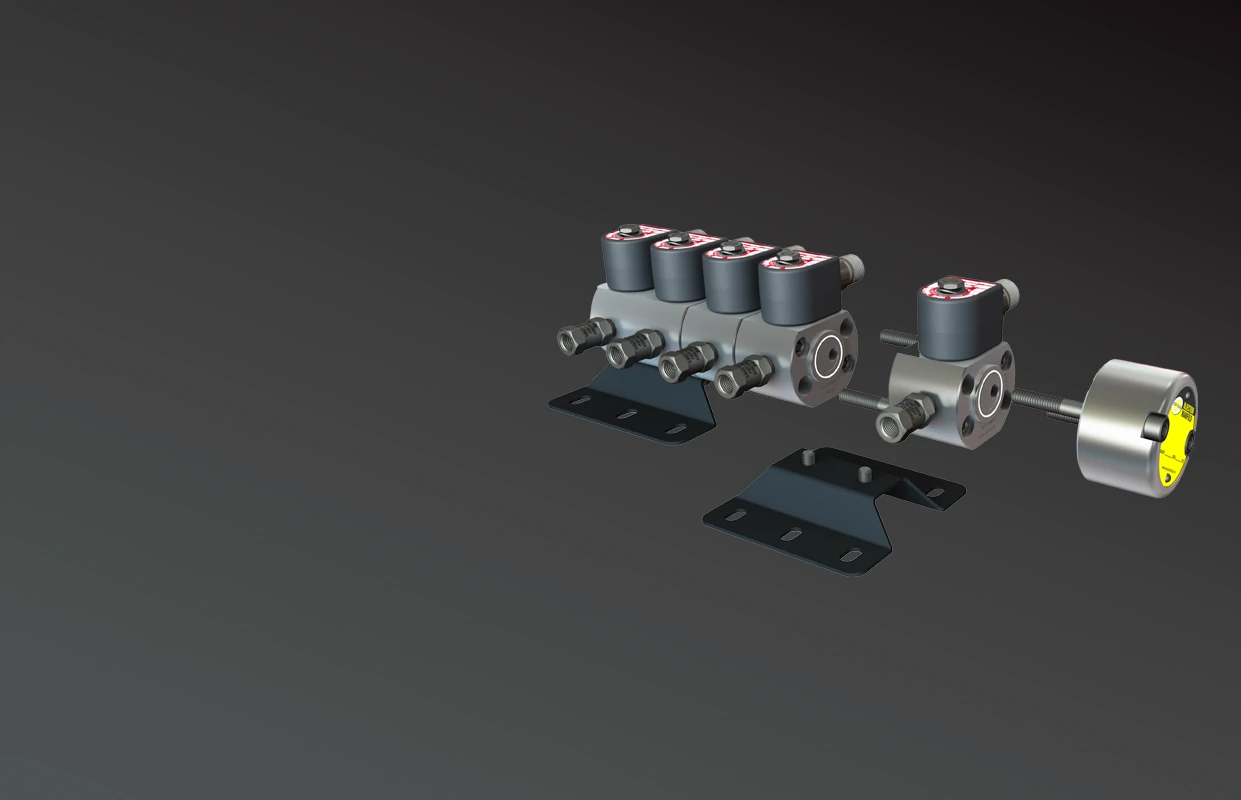

STACK™ Multipoint Injection Systems

A cost‑effective multipoint chemical injection solution, the STACK™ system enables delivery of chemical to multiple injection points from a single pump and controller, reducing complexity and operating cost. Designed for flexibility and performance in oilfield environments, STACK™ provides uniform treatment and reliable operation across a range of injection applications.

Overview
Resources

Features

Expandable from 2 to 15 injection points, easily added or removed in the field
All calibration and adjustments are done electronically, eliminating the need for mechanical setup or multi‑head pump setup
Independent rate control at each injection point with varying pressures and flow requirements
Single pressure transducer measures pressure status across all connected points
Compatible with Sirius Connect remote monitoring systems (optional)
Fully in-house engineered CR Pro solenoid valve internals designed for superior chemical resistance

Design Specifications

Injection Points Supported: 2–15 independently controlled points
Pressure Rating: Up to 2,000 psi differential
Voltage Options: Operates at 12 VDC or 24 VDC
Control Integration: Built‑in multipoint outputs on Fusion controller
Chemical Compatibility: No elastomeric seals for broad chemical range
Power Consumption: Low, suitable for solar/remote operations
Hazardous Rating: General purpose, Class 1 Division 1 (C1D1) and Class 1 Division 2 (C1D2)

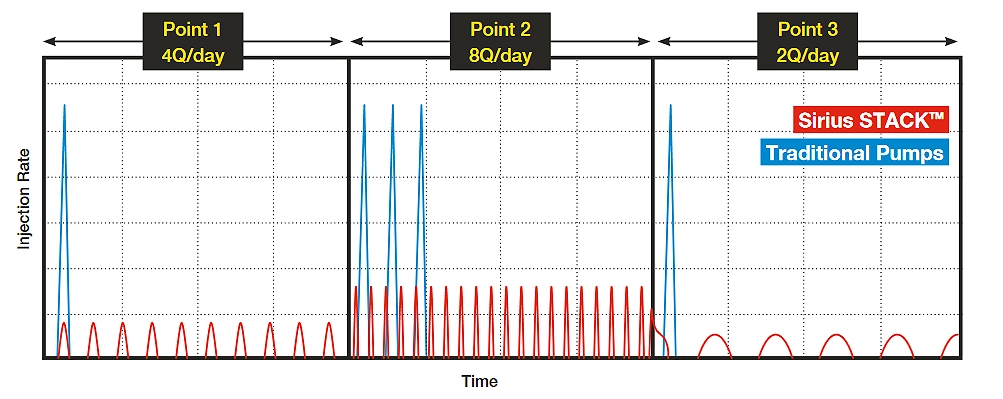

stack chart

The Sirius pump speed varies between injection points depending on rates and cycle time
required, which provides equal chemical contact time between points.
