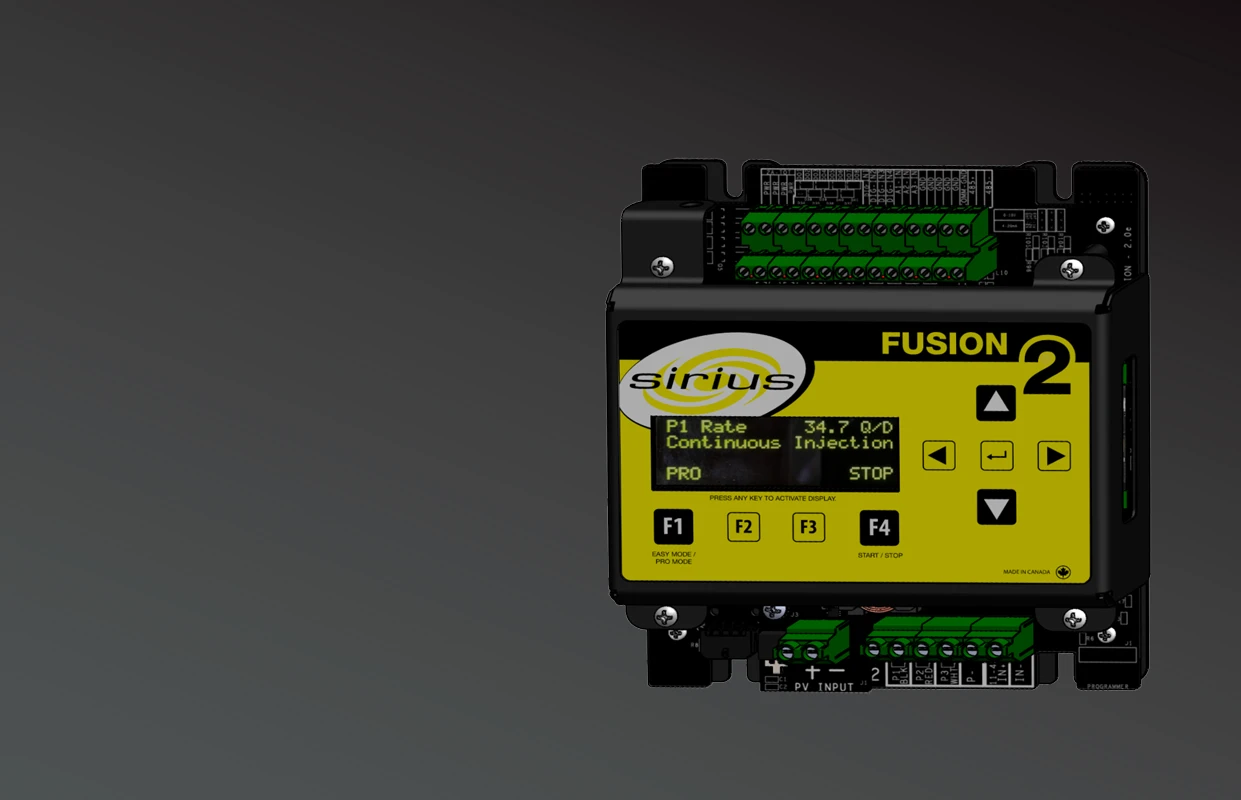

Fusion2™ Controller

A versatile, intelligent chemical injection controller for precise, autonomous operation in applications requiring a motor less than ½ horsepower. It simplifies calibration, adapts to changing field conditions, and provides visual rate feedback to eliminate guesswork. Compatible with AC, DC, and solar power including first-in-class MPPT solar charging, it supports flexible field deployment and advanced control features, maximizing accuracy, efficiency, and chemical savings in challenging oilfield environments.

Overview
Resources

Features

Intelligent calibration performs in‑situ adjustments for head, viscosity, and pressure
Real-time visual rate feedback for accurate injection
4-zone temperature control to save chemicals and prevent freeze-ups
Maintains accuracy under changing pressures
Stable injection despite power fluctuations
Reduces operator intervention and improves efficiency
Works with the Sirius STACK™ Multipoint Injection Manifold for up to 15 points

Design Specifications

Calibration: In-situ intelligent system compensates for head, viscosity, and pressure
Flow Control: Visual rate feedback, proportional rate, and multi-sensor advanced control
Rate Control: 4-20 mA control
Power Options: AC, DC, or solar with on-board MPPT charger
Temperature Control: 4-zone adaptive system
Pressure Compensation: Patented process pressure adjustment
Voltage Compensation: Patented technology for stable injection rates under fluctuating power
Deployment: Field-configurable and relocatable
Integration: Works with Sirius pumps and compatible with Connect™ remote monitoring
Application Range: Supports motors up to ½ HP

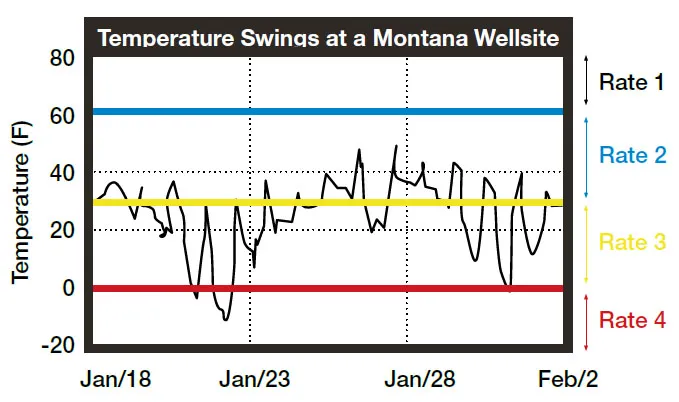

Simple Control

4-zone temperature control automatically adjusts flow rates based on changing temperatures, conserving methanol on warmer days while preventing freeze-ups during cold winter conditions.

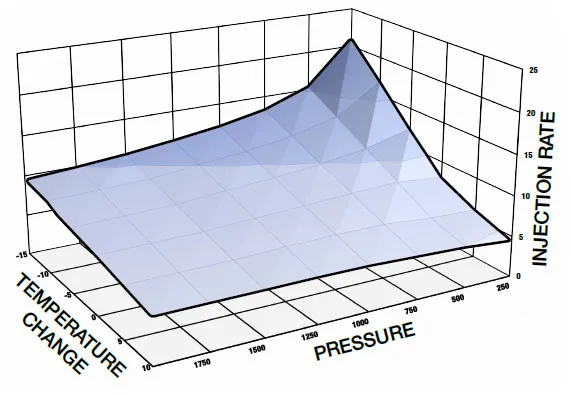

Advanced Control

Supports proportional rate control using external sensors or multiple sensor inputs for more advanced operation, with easy configuration for common equations like Hammerschmidt and Gas Gravity methods.

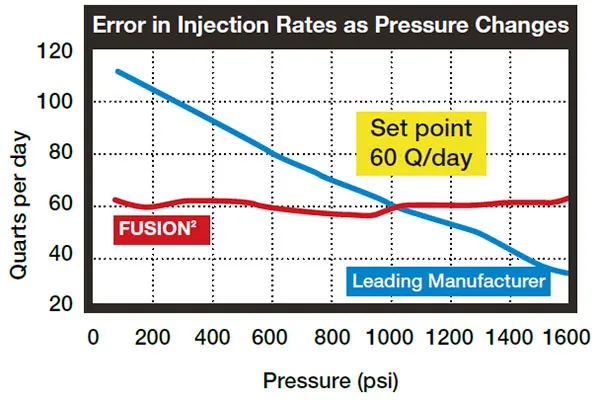

Autonomous Control

Patented pressure sensing technology automatically compensates for process pressure fluctuations, maintaining accurate chemical injection and reducing the risk of over or under injection.

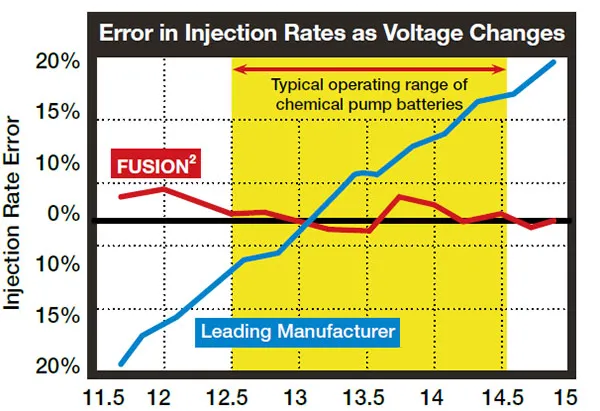

Voltage Compensation

Patented voltage compensation maintains a constant injection rate despite solar power fluctuations caused by day and night cycles, weather changes, and seasonal conditions.
